Home > Products > Compressor > Compressor Service Parts > Cylinder Head

roducts


Cylinder Head





Our variety of Cylinder Heads are available for replacement.

When replacing Cylinder Heads, it is recommended to replace accompanying Gaskets as these provide fresh sealing properties with each Cylinder Head replacement.


Our list of Cylinder Heads are as follows:

Head Mark
Cylinder Head
Orientation
Port Configuration
Service
Family

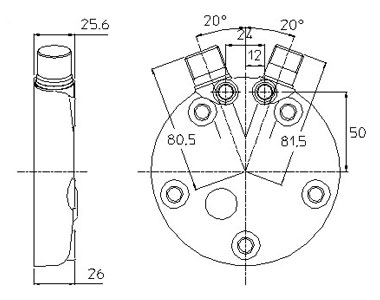

FG
(9539-0450)
VERTICAL
TUBE-O-RING
SUCTION:7/8-14UNF
DISCHARGE:3/4-16UNF
Charge Valve
SD5

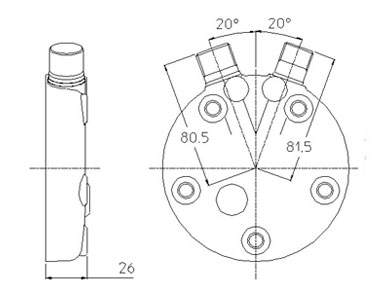

FL
(9557-0451)
VERTICAL
TUBE-O-RING
SUCTION:7/8-14UNF
DISCHARGE:3/4-16UNF
NIL
SD5

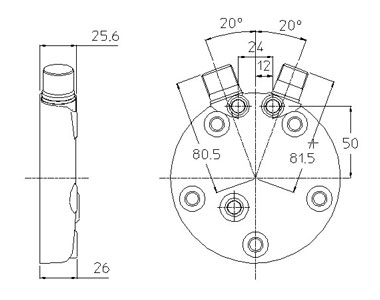

FW
(5084-0450)
VERTICAL
TUBE-O-RING
SUCTION:7/8-14UNF
DISCHARGE:3/4-16UNF
Charge Valve
SD5

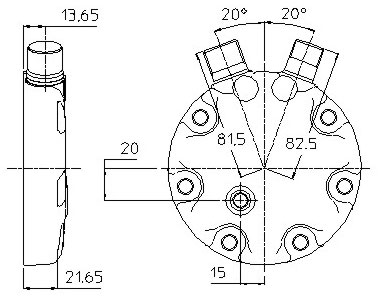

FZ
(7808-0450)
VERTICAL
TUBE-O-RING
SUCTION:7/8-14UNF
DISCHARGE:3/4-16UNF
HPRV
SD7
GV
(7863-0450)
HORIZONTAL
PAD FITTING
M10 x P1.5 (1)
HPRV
SD7

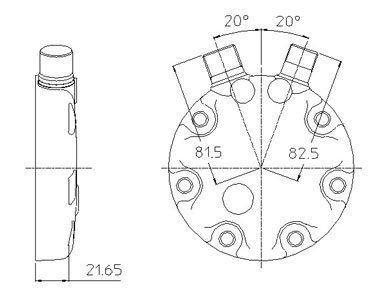

JE
(9539-0450)
VERTICAL
TUBE-O-RING
SUCTION:7/8-14UNF
DISCHARGE:3/4-16UNF
NIL
SD7

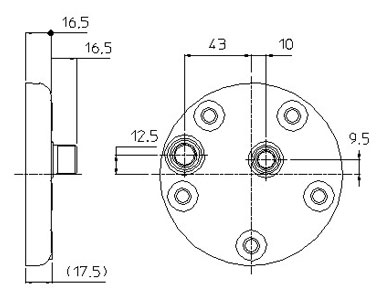

K
(8487-0451)
HORIZONTAL
TUBE-O-RING
SUCTION:7/8-14UNF
DISCHARGE:3/4-16UNF
NIL
SD5
SW
(6688-0450)
HORIZONTASL
PAD FITTING
M10 x P1.5 (1)
HPRV
SD5
